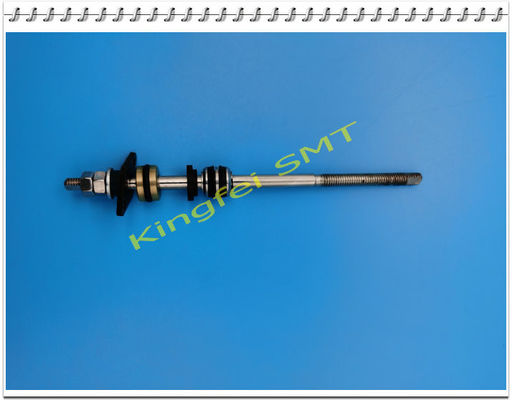

YAMAHA YV64D Dispenser Shaft KM4-M7114-001 ROD K40-M7118-00X

Trục phân phối YAMAHA YV64D KM4-M7114-001 ROD K40-M7118-00X

Thông tin chi tiết:

1, Tên bộ phận: Thanh YV64D

2, một phần số:KM4-M7114-001 K40-M7118-00X

3, Máy: Máy YV64D

4, tình trạng: Mới

1 GÓI KM4-M851J-00X 8 8
2 KG3-90M31-00X LẮP GHÉP 1
3 KU2-M7101-A0X HOUSING COMP.HEAD1
4 KM4-M7114-001 ROD2
5 KG3-M7117-00X RACK 2
6 KM4-M7118-00X PISTON 2
7 KM4-M7119-00X PISTON2 2
8 KU2-M7123-00X PLATE1 1
9 KU2-M7124-00X PLATE2 1
10 K37-M7125-00X PLATE2 2
11 KG3-M7126-00X XUÂN 1 2
12 KG3-M7127-00X XUÂN 2 2
13 K37-M7131-00X DAMPER 1 2
14 KU2-M7196-00X DOG1 1
15 KU2-M7197-00X DOG2 1
MÁY GIẶT 16 KU2-M7138-00X 1 2
MÁY GIẶT 17 KG3-M7139-00X 2 2
18 KU2-M7140-00X HOLDER, BRG.1 1
19 KU2-M7141-00X HOLDER, BRG.2 1
20 KU2-M7142-00X TẤM BRG.2
21 K58-M1892-00X VÒNG BI 2 4
22 KG3-M7147-00X O-RING 2
23 KG3-M7190-00X Nắp, NOZZLE 2
24 92990-08600 KẾ HOẠCH MÁY GIẶT 2
25 KU2-M7145-00X BRACKET 1 1
26 KU2-M7146-00X BRACKET 2 2
27 KU2-M7165-00X SHAFT, GEAR 2
28 HƯỚNG DẪN KM1-M9160-00X 2
29 KM4-M7147-00X NUT 2
30 KM4-M7170-00X SPACER 2
31 KU2-M7147-00X BỘ CẢM BIẾN 6
32 K40-M7118-00X PISTON 1 2
33 K40-M7120-00X PLUG 1 6
34 K40-M7132-00X DAMPER 2 4
35 K40-M7133-00X DAMPER 3 4
36 K40-M7135-00X DAMPER5 2
37 K40-M7145-00X O-RING 10 6
38 K40-M7148-00X ĐÓNG GÓI 5 6
39 KM4-M7510-00X CYLINGE 2
40 K42-M7511-00X KIM CẦN 2
41 K42-M7514-00X NUT 2
42 KM4-M7113-XXX NOZZLE SEL.2
43 KG3-M7191-00X SPACER 2
44 KK5-M7136-00X DAMPER 6 2
45 KU2-M7144-00X PIN, STOPPER 2
46 KK5-M7194-010 BUSH WASHER 4
47 KHỐI KU2-M7185-00X, CẢM BIẾN 2
48 KU2-M7187-00X FIBER 2
49 KU2-M71K0-YYY KEO XÁC MINH 1 BỘ
50 KU2-M7102-A0X ĐÁNH GIÁ CUỐI CÙNG KHÔNG KHÍ 1
51 KU2-M7174-A0X VAN CỔNG.1
52 KIT ĐỔI NHIỆT KU2-M71F1-0XX 2 2002.4
53 KU2-M7149-00X SHIM 2 TÙY CHỌN
54 KM4-M7149-00X SHIM 6
55 99009-10400 CIRCLIP 2
56 99009-30400 VÒNG KẾT NỐI 2
57 K33-90M16-00X NHẪN O (P4) 4
58 99480-04010 PIN, PARALLEL 2
59 $ BỘ ĐIỀU KHIỂN TỐC ĐỘ SS4-M5A 8
60 $ TL6-01 LIÊN DOANH 2
61 $ TL6-02 LIÊN DOANH 2
62 KU2-M7172-00X ADAPTA ASSY.2
63 KM4-M7175-00X MUFFLER 1
64 KU2-M7175-00X CAP SYRINGE 1 30cc
65 KU2-M7177-00X SYRINGE COVER 1 30cc
66 KU2-M7178-00X PLUNGER 2
67 KU2-M7179-00X PLATE, STOPPER 1
68 KU2-M717A-00X NHẪN 2
69 KM4-M8901-10X NHẪN O 1
70 $ TSR6-01 LIÊN DOANH 1
71 $ SL6-M5 LIÊN DOANH 1
72 KU2-M717C-00X GASKET 2
73 91317-05008 ĐẦU Ổ CẮM CHỐT 1
74 KU2-M71H0-00X ĐÍNH KÈM CHO 10cc 1
75 99480-04008 PIN, PARALLEL
